SOLAR DC ENERGY METER MADE IN INDIA - REMOTE MONITORING DC ENERGY METER IN DELHI, KOLKATA, INDIA

Posted onMar 03, 2015 | Hits: 2244 | Stock No: #1418
Country:   India
City:   Kolkata
Property Type:   Solar Power Systems & Solar Backup System
Type of the ad:   Seller



Gold

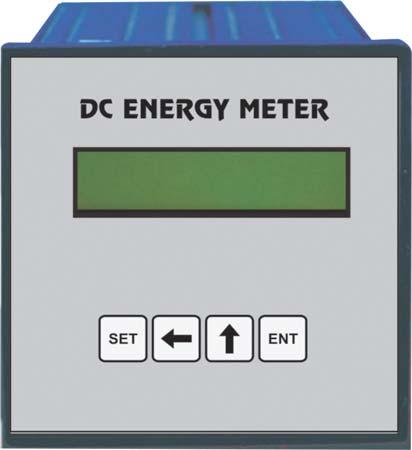

Introducing “DC Energy Meter” India's First Remote Monitor -
able Multi Channel DC Energy Meter cum Fault Alarm
Management System. the DC meter is Equipped with
a 4 x 20 character LCD, it displays measured values of
current, voltage and energy in five channels with real time
Clock. It has built in Real time Clock and internal data
storage memory to create an internal Data log of measured
values with real time stamp. Our DC Energy Meter is equipped with five dc current
measurement channels coupled with one DC voltage input.
It measures DC Current & KWH in each channel,
maintains data log of the same at preset Frequency of data
updating, real time clock and phone number/s are user
programmable through Serial port. Similarly logged values
downloaded into a PC by using simple set of commands. The DC Meter is non intrusive, does not need current
shunts or series circuits. All the measurements are
galvanically isolated.


Manage fault redressal at un-manned telecom sites /
repeater stations. Upon receiving a given fault alarm, it
sends SMS to a Pre-Programmed Mobile No. Followed by a
phone call, making the fault management system totally
automatic and fool proo . It can escalate fault alarm status to
set of pre-programmed mobile numbers as per user defined
escalation matrix.The fault alarm & Energy data can be
separately maintained over a remote server or a PC.  The DC Meter is a foolproof Energy Metering and
audit Device along with comprehensive unmanned fault
alarm management system. This DC Meter is an ideal
Energy Audit Device for Telecom, solar photovoltaic and
Industrial applications. The DC Meter is ideally suited to all essential services
needing prompt service attention. It has applications in
telemetry, telecom and industrial. Eliminates human error,
reduces operating costs and boosts efficiency. It pays for itself.

Salient Features:- Economical
Instant audit of energy generation and
consumption.
Pilfer proof and fool proof.
Reduces maintenance costs.
Saves Manpower
Boosts Efficiency
Unmanned Energy Audit and flawless
metering and billing.

Input Power Supply 40 - 60V or 20 - 30V or 9 - 15V, 70 - 300V DC
DC Voltage Channel 01 No., 40 - 60V DC Or 20 - 30V Or 9 - 15V
Custom Voltage also available.
DC Current Channel 05 Nos., 100A Rating Each
(Custom current Range also available)
Measurements DC Voltage, 5 Channel Measurements of DC Current and
KWH.
Alarm Status 5 No. Potential Free alarm Status.
Systems Clock Provision for Real Time Clock on Board.
Accuracy of Measurement DC Voltage - 0.5%
DC Current - 1%
DC Current Linearity - 0.1%
DC Energy Measurement - 1.5% of FSD 1 Digit.
Measurement Display 4 Line 20 Character LCD Backlit Display
Provision For Remote Monitoring Meter Data Send SMS at Pre-Determined Interval or Data on
Demand.
Tentative Dimensions 225 X 140 X 60 (MM) (H X W X D)
Weight 6 KG
Programming Options Real Time Clock, Updation Frequency, Memory Reset, Data
Download, Mobile No. For AMR.

Also available in low cost DC Energy Meter having 2 line LCD display  ( Voltage/Current /Load in Watts /Cumulative Energy in KWh , Voltage 20-300VDC, Current 0-40A). Email us for quotation!
