SOLAR POWERED LIFT - SOLAR POWERED ELEVATOR IN MUMBAI, DELHI, KOLKATA, CHENNAI, BANGALORE - SOLAR POWER ELEVATOR BUILDER IN INDIA

Posted onFeb 19, 2017 | Hits: 24726 | Stock No: #1366
Country:   India
City:   Delhi-NCR
Region - State:   Haryana
Solar Energy Companies In India, Wind Energy Companies India:   SOLAR LIFT
Type of the ad:   Seller



Gold

We build solar powered Lift for Home & Complexes, Solar Powered MultiStoried Building Lift & Common Lights, Shopping Mall, Mutiple Building Complex Elevators, etc. We are providing Solar Lift Building & Solar Plant Installation service Pan India as a Local Solar Systems Installation Contractor. Solar Powered Elevator uses less energy for standby and drive operation. The powered stored is in it's batteries approx. 6.5 kw. It can be used for the Solar Powered Lift operation or other Solar Home Power needs. 12 hrs back-up. Solar Power Lift for Commercial Use 6-hrs back-up is suggested to cut cost of Solar Power Plant considering Solar Elevator will be used only during the office hrs.


In Case you may require 1 Solar Powered Elevator of 6-persons,
let me give you Technical Details for a 6-passengers Elevator as follows:

G + 4 stops - Geared Traction Elevator.

The motor Kw requires 3.7Kw.

Motor Power 3.7 Kw - Once the main motor stops the door motor will start; hence 3.7 Kw Power can be used for the door drive.

Automatic door drive consumes 0.75 kw.

Car lighting, Fan, Car top inspection box light, floor display, battery charger for alarm and ard will consume about 0.30 kw.

So total Solar Power required min. 4 Kw.

Power supply will differ in terms of capacity of Lift floor, height, speed, type of machine geared and gearless or hydrullic.

Email us today for your Solar Powered Elavators across India! While seeking our Solar Power Solution for you existing Lift, we ask you to answer the following questions to calculate Power Supply:

a) Type of Doors in each Lift  - manual / automatic?

b) Type of Machine - Geared / Gearless?

c) Nos. of Floors - G + .. ?

d) Automatic resque device - Attached / Not Attached?

e) Speed of Lift?

Technical Specifications for the Passenger Lift are as follows:

Type of Lift - passenger

Capacity    6 passenger ( 408 kgs )

No. of Floors -  G+4

Type of Door - mild steel center opening Automatic Door with clear opening 700 mm

Type of Cabin -  mild steel powder coated cabin

Cabin size inside -  1100 x 1000   w xd mm

Controls  vfd  with full collective controls

Price of Lift - including transport, installation and freeservice for 1 year @Rs 7,50,000/- Plus Solar Power Plant Cost.

Prices are not inclusive of VAT.

Scaffolding

Any other Civil Work required to be done at site EXTRA (Civil Work Customer's Scope).

Motor kw - 3.7 kw

Machine Room required 3000 x 3000 x 2400 w x d x h.


Also our Elevator Design Engineers provide Elevator designing services, Design Consultancy & General Arrangment Drawings for all type of Elevators with all modern features, like:

Passenger
Hospital
Goods
Car lift
MRL lifts geared and gearless machine
High speed elevators speed upto 2.0 meter/ sec
Hydarullic home lifts
Dumbwaiters

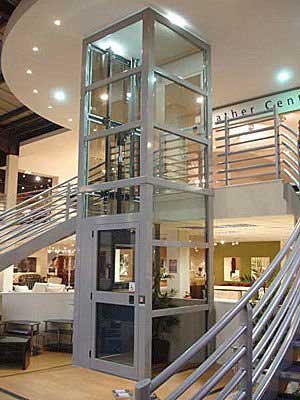

Full glass elevators
Capsule elevators
Mild steel structures for elevators for home and commercial elevators
Below traction elevators
Gearless single phase elevators.

We are specialised in designing multiple door elevators like L opening
and opposite openings!

All the designs will meet the safety standards as per IS codes

We will be designing the elevator as per the inputs provided from your
side on our data sheet which will be given by us .

The drawings wlll be autocad generated drawings in A4 size and will be
converted into PDF to recieve at your end
drawings will be mailed to you within 1 days from the reciept of data sheet

Drawing Set will include:

Page no 1 - Hoistway plan

Page no 2 - Machine room plan

Page no 3 - Machine room floor slab cutout details

Page no 4 - Shaft elevation

Page no 5 - Door frame under lintal height  and cabin layout

Page no 6 - Scafolding details

Page no 7 - Shaft lighting details

Page no 8 - Technical data

Page no 9 - Owners work

Page no 10 - Power supply details.

Also drawings can be given in 2 pages in A3 size for licence submission if the lift is already in working (only on demand from the client).
